Microporous Pleated Filter

Filter Length

10″, 20″, 30″, 40″, 50″, 60″

Applicable PH

1~13

Maximum differential pressure

4.0Bar

Operating temperature

1Bar 80°C, > 50°C stainless steel support ring is recommended

Sterilization

Resistant to 121°C, in-line steam sterilization for 30 minutes

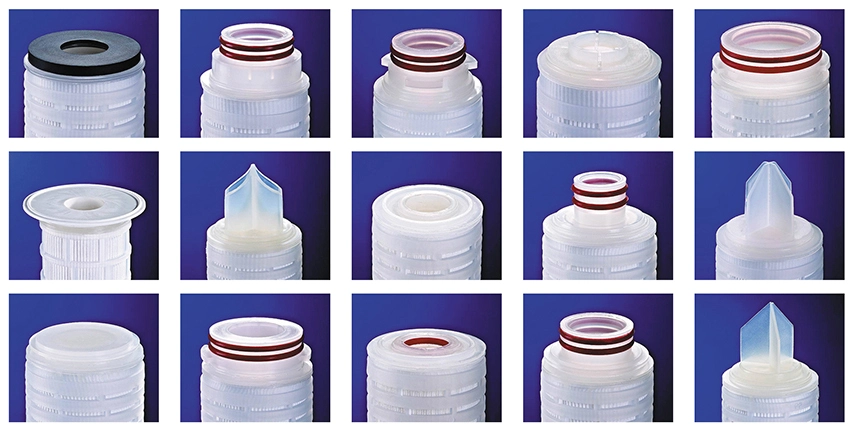

Addable end cap material

Polypropylene

Interface type

flat press-in type (other interfaces can be added)

Filter precision

0.1, 0.22, 0.45, 1, 3, 5, 10, 20, 50(μm)

Introduction

Employed a variety of high-quality filter material, folded filter is made by folding the imported non-woven fabric or mesh, which serves as the supporting layer.The materials meet the requirement of FDA, and have a wide range of chemical compatiblity. The filter housing, the centre rod, and the end coverall employs the thermal fusion welding technology.Without using any glue, the production process is environment-friendly, no pollution, and no leakage.

Technical Parameter

1)Filter Size:

Outer diameter: 69 mm

Length: 9.75″, 10″, 20″, 30″, 40″

2)Material:

Sealing ring material: silicon rubber, ethylene-propylene rubber, nitrile rubber, fluorine rubber, Teflon rubber

Shell/centre rod/end cover: polypropylene

Supporting/diversion layer: polypropylene

Filter material: polypropylene(PP),poly ether sulfone (PES), poly tetra fluoro ethylene (PTFE),Nylon 6 (N6),PVDF membrane

3)Filter element performance:

Filtering accuracy: 0.1µm,0.22µm,0.45µm, 1µm and 3µm,5µm , 10µm, 20µm, 50µm

Max. operating temperatures: 1 bar80 ‘C (when the temperature exceeds 50 “℃ the recommendation is to employ stainless steel as the supporting ring)

Maximum PSID(Pounds per Square Inch Differential): 4.0 Bar at room temperature

Max. backpressure difference: 2.0 Bar at room temperature

Sterilization temperature: 121 ℃, 30 minutes at a time

Features

1)Outstanding chemical compatibility,suitable for filtering the strong acid, alkali and organic solvents.

2)Membrane is the deep folding filtration, and the folding design increases the filtering area.

3)Low PSID(Pounds per Square lnch Differential), strong pollutant-carrying capacity, long service life.

4)A variety of filtering precisions are offered.

5)The gradual aperture changes can provide high pollutant-carrying capacity.

6)Materials meet the FDA’s requirements.

Application

1)Pharmaceutical industry: pre filtration of various antibiotic pharmaceutical

2)Food and beverage industry: filtration of wine, mineral water and drinking water

3)petroleum industry: pre filtration of oil field water

4)Electronic industry: pre filtration of high purity water

5)Chemical industry: filtration of all kinds of organic solvents,acid and alkali
