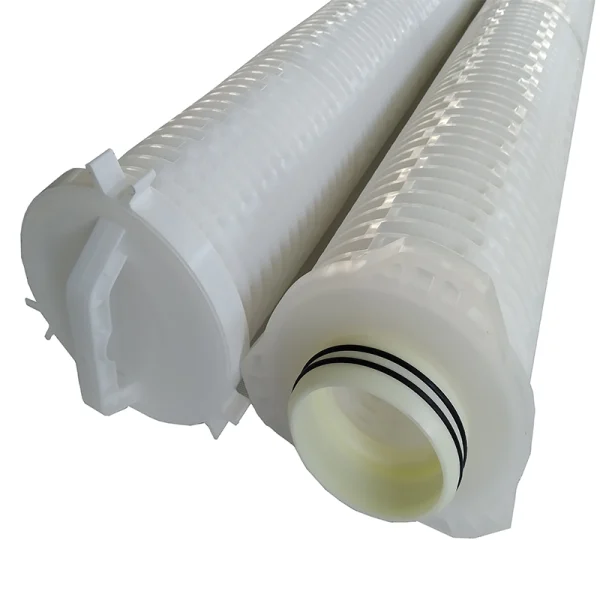

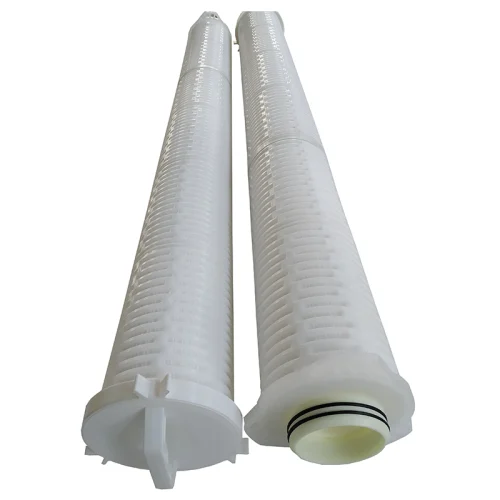

Pentair High Flow Replacement Filter
End caps
Nylon
Seals
Buna-N O-Rings
Components
PVC core
Configuration
single open end
Flow direction
outside-in
Nominal Length
60” (152.4cm)
Nominal O. D.
6.75” (17.15cm)
Recommended change out
25-30 PSID (based on process limits)
Maximum operating temperature
130°F. (54.4°C)
Introduction
Compared to conventional cartridge filters, equivalent Pentair filter element saves money by lowering capital cost and operating costs. When comparing filters with the same efficiencies or Beta ratings, nothing outperforms the cost/performance value achieved with AquaLine. Whether it is for process water, waste water, food & beverage, pharmaceutical, or other fluids for pre-filtration, guard filtration or final filtration, equivalent Pentair filter element is the right choice.
Equivalent Pentair filters are available with a broad range of media types and micron ratings to match requirements of the application. For temperatures above 130°F (54.4°C) up to 180°F (82.2°C) please contact us.
Technical Parameter
Element type: fluid process element
Separation media: Proprietary PolyForm media formulation comprised of 100% polypropylene micro-fibers cross-linked into a locked pore structure specifically designed to separate particulate from high flow liquid streams
Media efficiency: 5 micron (nominal)

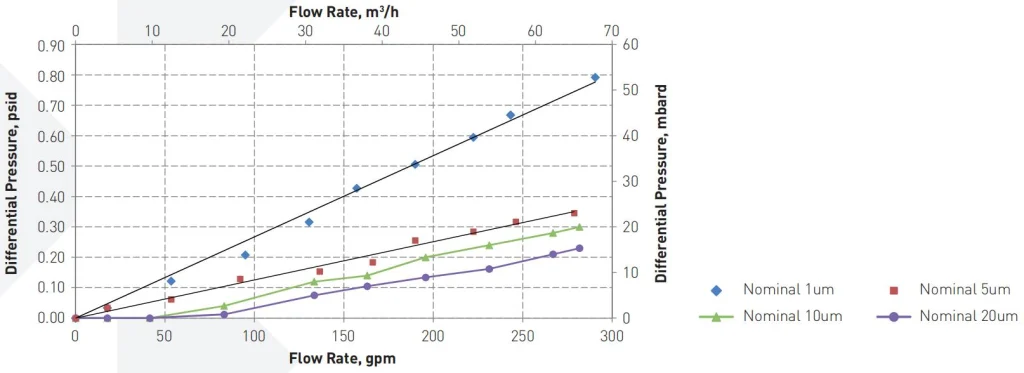

Clean Water Differential Pressure Curves
Application
1)RO cartridge filtration and seawater desalination pretreatment
2)Filtration of condensed water in power plants
3)Filtration of bulk drug, solvent and water in bio-pharmacy industry
4)Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
5)Painting, petrochemical industry
6)Micro-electronics, film, fiber, resin
