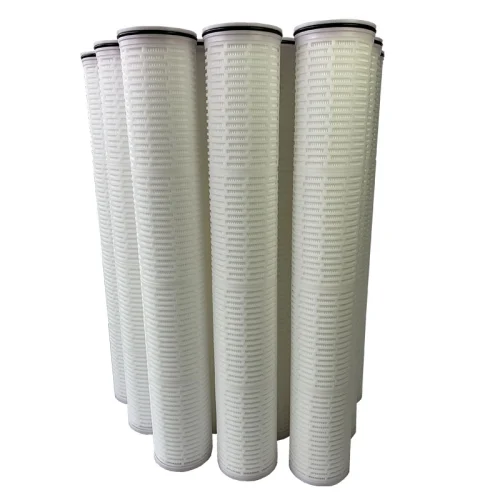

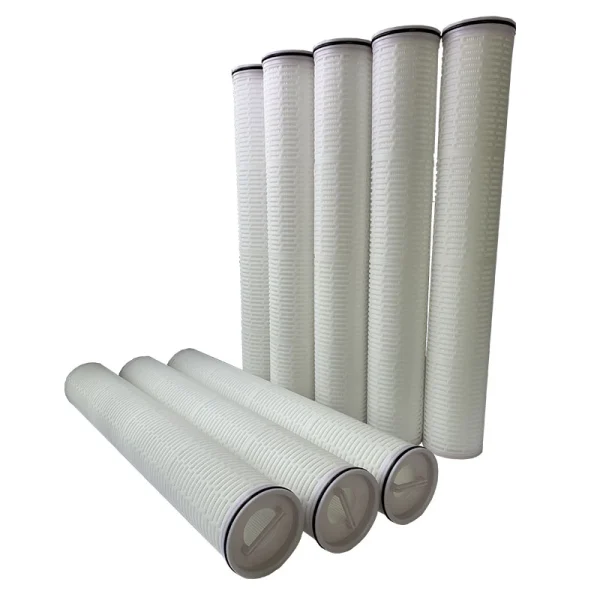

Pall High Flow Replacement Filter
Use pH
1-13
Maximum differential pressure
2.0Bar
Overspeed accuracy
1μm、3μm、5μm、10μm、25μm、50m、100μm
Interface form
flat press-in type (other interfaces can be added)
Gasket/Seal
Silicone rubber, ethylene propylene rubber, nitrile rubber, fluorine rubber
Introduction
PALL high flow filter has a big diameter of 6 inches (152 mm), but no central supporting tube. Only one end of the filter is open and its flow manner of filtering fluid is from inside to outside. The big diameter of filter element increases effective filtering area and greatly reduces the amount of filter element and the size of its body case. Due to its large flow and long lifespan, PALL large flow filter can lower investment and human cost in many applications.
Features
1)The structure of gradual aperture.
2)Maximum flow of one filter can be up to 110m3/h during the water filtering.
3)Filtration system size can be reduced by 50% in maximum.
4)Filters with the length of 20’’, 40’’ and 60’’ can be offered.
5)Inside-out directions guarantee all impurities to be left inside the filters.
Technical Parameter
1)Filter size:
OD: 6 inches (152 mm)
Length: 20 inches (528 mm), 40 inches (1022 mm), 60 inches (1538 mm)
2)Parts materials:
Sealing material: EPR, BNR
End caps: reinforced polypropylene with fiberglass
Supporting/diversion layer: polypropylene (PP)
Filter material: pleated fiberglass, pleated deep polypropylene (PP), MBPP
3)Performance of filter element:
Filtering accuracy: 1micron, 4.5micron, 6micron, 10micron, 20micron, 40micron, 70micron, 100micron
Highest operating temperature: 121℃ for pleated fiberglass, 82℃ for pleated deep polypropylene (PP), 65℃ for MBPP
Maximum pressure drop: 3.4bar for pleated fiberglass, 3.4bar for pleated deep polypropylene (PP), 1.03bar for MBPP
Recommended pressure drop for filter replacement: 2.4bar, 20℃
Recommended maximum filtering water flow: 660L/min for 20inch filter, 1300L/min for 40inch filter, 1900L/min for 60inch filter
Application
1)RO cartridge filtration and seawater desalination pretreatment
2)Filtration of condensed water in power plants
3)Filtration of bulk drug, solvent and water in bio-pharmacy industry
4)Filtration of bottled water, liquid glucose, edible oil, juice, soft drink and milk
5)Painting, petrochemical industry
6)Micro-electronics, film, fiber, resin
