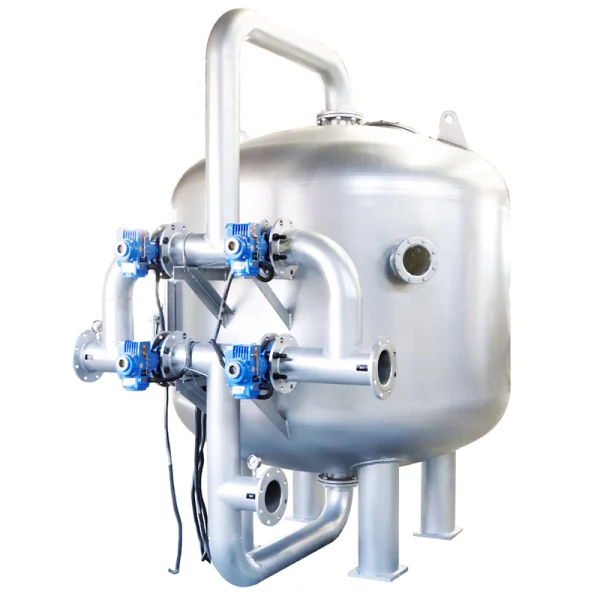

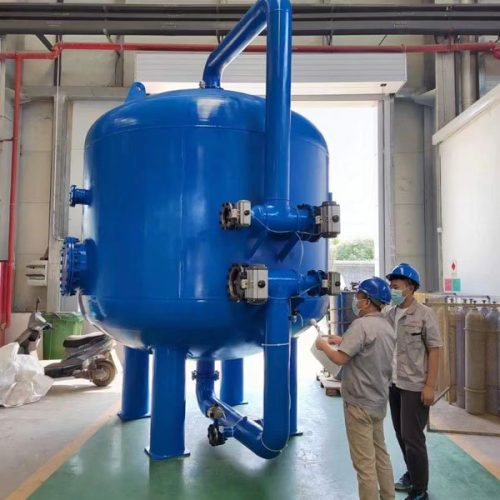

Multi-Medium Filter

Housing Size(mm)

φ500*2150 – φ3600*4650

Housing Thickness(mm)

6 – 12

Inlet/Outlet

DN50 – DN250

Flow Rate(m3/hr)

2 – 180

Pressure(bar)

Sand Weight(ton)

0.35 – 17.5

Introduction

The multi-medium filter can use one or several filter media to effectively remove suspended impurities from the water with high turbidity. It can make the water with high turbidity pass through the granular or non-granular material of a certain thickness under a certain pressure, so as to effectively remove the suspended impurities and make the water become clear. Commonly used filter materials include quartz sand, anthracite, manganese sand, etc., which is mainly used for water treatment turbidity removal, softening water, pure water pretreatment, and the effluent turbidity can reach 3 degrees below.

Features

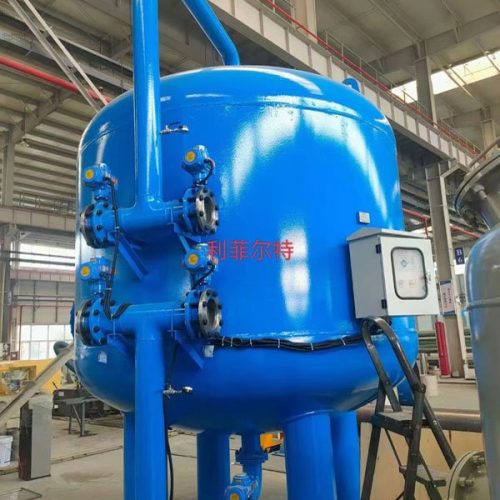

The equipment is mainly composed of tank body, water distribution system, water collection system, filter material layer, diaphragm (plate), water cap, supporting layer and internal supporting pipes, etc., and external connection with raw water inlet, clean water outlet, backwash drainage and other main pipes and its matching control valve, pressure gauge, sampling valve.

1)The filter area is large, the flow rate is high, the operation effect is good, and the packing cost is low.

2)The use of double filter material can reduce the running resistance.

3)Filter material has features of strong corrosion resistance, high porosity, large fouling capacity, moderate density, and easy backwash.

4)Filter main material: stainless steel 304, stainless steel 316, Q235 carbon steel, Q235 carbon steel lining rubber.

5)Single filter flow rate is 0.5~200T/h.

6)Strong impurities intercepting capacity, small water loss and good filtration effect.

7)Water collector material is optional (stainless steel or ABS material), longer life.

Advantages

Small backwashing water consumption

Equipment convenient installation

Easy operation for finishing project fast

You can get large flow rate

No maintenance helps you save costs

Working Principle

Multi-medium filter (also known as mechanical filter) is a filter with layers of anthracite, sand, fine crushed garnet or other materials as the filter bed. The top layer of the filter bed consists of the lightest and coarsest grades of material, while the heaviest and finest grades of material are placed on the lower part of the bed. The principle is to filter by depth: larger particles in the water are removed at the top layer and smaller particles are removed in the deep part of the filter medium so that the water quality meets the standard after crude filtration.

The equipment is pressure type, the principle is that when the raw water passes through the filter material from top to bottom, the suspended matter in the water is intercepted by the surface of the filter layer due to adsorption and mechanical blockage; When the water flow into the middle of the filter layer, because the sand in the filter layer is more closely arranged so that the particles in the water have more chances to collide with the sand, so the surface of the water flocculation, suspended matter and sand particles adhere to each other, then the impurities in the water are intercepted in the filter layer, so as to get the clarified water quality.The content of suspended matter in filtered water can reach less than 5mg/l.

Technical Parameter

Model	Housing Size (mm)	Housing Thickness (mm)	Inlet/Outlet	Flow Rate (m3/hr)	Sand Weight (ton)
LF-SYS500	φ500*2150	6	DN50	2	0.35
LF-SYS600	φ600*2250	6	DN50	3	0.5
LF-SYS800	φ800*2450	6	DN65	5	0.8
LF-SYS1000	φ1000*2550	6	DN65	8	1.3
LF-SYS1200	φ1200*2650	8	DN65	12	1.9
LF-SYS1500	φ1500*2850	8	DN80	18	2.9
LF-SYS1600	φ1600*2950	8	DN80	20	3.5
LF-SYS1800	φ1800*3050	10	DN100	25	4.3
LF-SYS2000	φ2000*3150	10	DN100	30	5.6
LF-SYS2200	φ2200*3300	10	DN125	40	6.5
LF-SYS2400	φ2400*3400	10	DN125	50	7.8
LF-SYS2500	φ2500*3450	10	DN125	60	8.75
LF-SYS2600	φ2600*3450	10	DN150	70	9.3
LF-SYS2800	φ2800*3600	10	DN150	80	11.5
LF-SYS3000	φ3000*3900	12	DN219	100	12.2
LF-SYS3200	φ3200*4500	12	DN219	120	14
LF-SYS3400	φ3400*4600	12	DN250	150	15.75
LF-SYS3600	φ3600*4650	12	DN250	180	17.5
Notes:
1) When only one filter housing, the filter can be backwashed.
2) Control cabinet is domestic PLC control cabinet text screen.
3) Working temperature: 10-80℃.
4) Pressure(bar): 10
5) Housing Material: Q235
6) Sand: Quartz Sand

Application

Cooling water treatment, raw water treatment, paper industry, irrigation industry, industrial circulating water, food processing, paper industry, electric sewage, urban tap water, etc.
