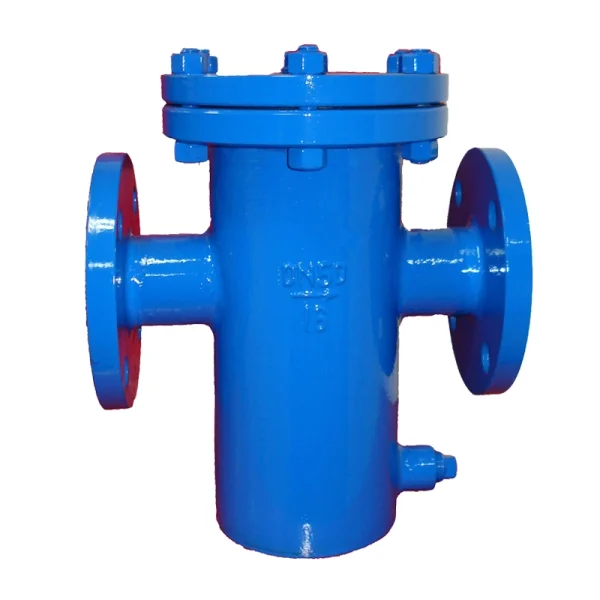

Basket Filter
Nominal diameter
DN25 – DN300
Working temperature
-30℃- 200℃
Filtering accuracy(mesh)
10-300
Seal material
NBR, FPM, oil-resisting asbestos
Working pressure
1.0Mpa, 1.6Mpa
Housing Material
carbon steel, stainless steel 201, 304, 316
Introduction

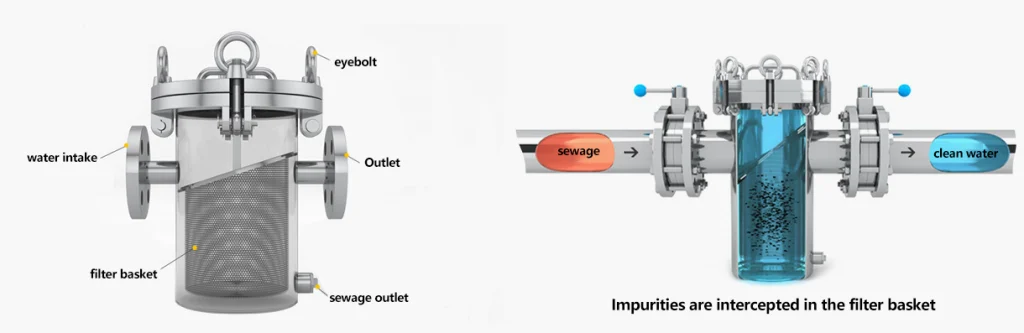

Basket Filter is a small equipment that can remove the solid particles.It can ensure the normal work of the compressor, pump, instrument and other equipment. When the liquid enter the filter drum with a certain filter screen, the impurities are stopped and the pure liquid can discharged from the filter. Just remove the removable filter drum and reload it when needed washing. Therefore,the operation and maintenance are convenient too.
The function is to filter the mechanical impurities in the medium; rust and sand in the sewage and solid particles in the liquid so that it can protect the parts of tube from abrasing and blocking. What’s more it can ensure the normal use of the equipment. The Basket Filter usually connected by flange.

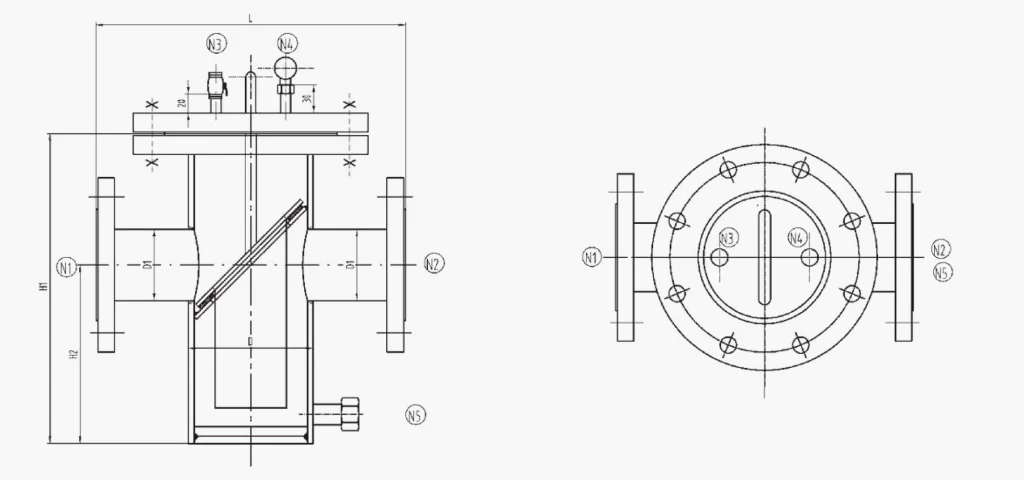

Technical Parameter
| Model | Pipe Diameter | ΦD | ΦD1 | H1 | H2 | L | Sewage Outlet |
|---|---|---|---|---|---|---|---|
| LFT-700L | DN700 | Φ920 | Φ720 | 1810 | 1070 | 1280 | DN50 |
| LFT-600L | DN600 | Φ820 | Φ630 | 1520 | 870 | 1180 | DN50 |
| LFT-500L | DN500 | Φ720 | Φ530 | 1500 | 910 | 1040 | DN50 |
| LFT-450L | DN450 | Φ630 | Φ480 | 1300 | 810 | 950 | DN50 |
| LFT-400L | DN400 | Φ530 | Φ426 | 1100 | 660 | 830 | DN25 |
| LFT-350L | DN350 | Φ478 | Φ377 | 910 | 540 | 760 | DN25 |
| LFT-300L | DN300 | Φ426 | Φ325 | 810 | 490 | 705 | DN25 |
| LFT-250L | DN250 | Φ377 | Φ273 | 730 | 455 | 620 | DN25 |
| LFT-200L | DN200 | Φ325 | Φ219 | 650 | 360 | 560 | DN25 |
| LFT-150L | DN150 | Φ273 | Φ159 | 550 | 310 | 480 | DN25 |
| LFT-125L | DN125 | Φ219 | Φ133 | 480 | 270 | 420 | DN20 |
| LFT-100L | DN100 | Φ219 | Φ108 | 400 | 230 | 400 | DN20 |
| LFT-80L | DN80 | Φ159 | Φ89 | 360 | 210 | 380 | DN15 |
| LFT-65L | DN25-65 | Φ133 | Φ76 | 330 | 190 | 330 | DN15 |
Application
Power, reverse osmosis pre-stage, petrochemical, fine chemical, food and beverage, automobile, industry, metallurgy, papermaking, medical Medicine, microelectronics, environmental protection water treatment and other industries.
